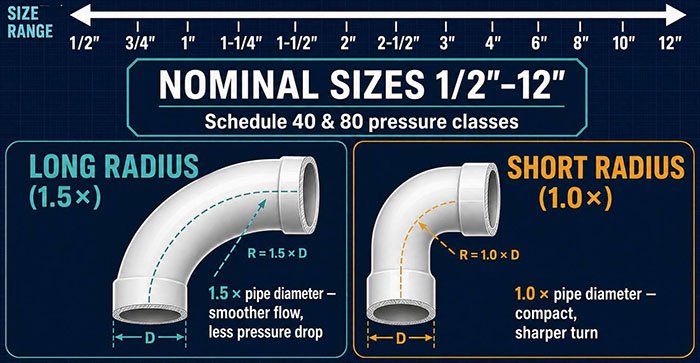

Size is the first thing a buyer asks about a 90 degree PVC elbow — and it’s where most product listings go vague. PVC 90 degree elbows are made in nominal sizes from 1/2″ to 12″, in Schedule 40 and Schedule 80 pressure classes, with a bend radius of either 1.5 times the pipe diameter (long radius) or 1.0 times (short radius). This guide covers the standard sizes, the radius types, and how to match an elbow to the pipe you already have.
About 90 degree elbow size

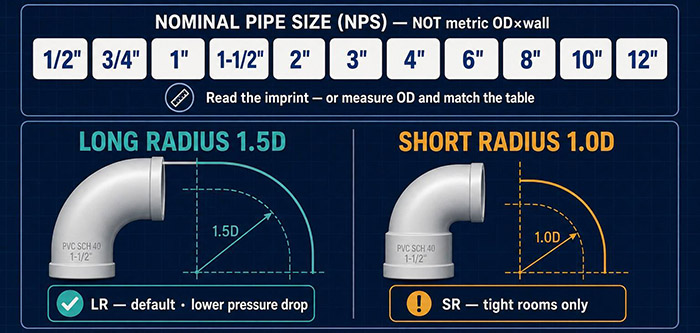

PVC elbow sizes are defined by the nominal pipe size (NPS) they fit — 1/2″, 3/4″, 1″, up to 12″ — not by the metric outer-diameter × wall-thickness notation used for steel pipe. If the pipe is marked, read the imprint; plumbing-grade PVC always carries size and rating information printed on the barrel. No marking? Measure the outside diameter and match it against the table in the next section.
The other dimension that matters is the bend radius. Long radius (LR) elbows have a centerline radius of 1.5D, short radius (SR) elbows 1.0D — D being the nominal pipe diameter. LR is the default for PVC: the gentler sweep lowers pressure drop and keeps flow smooth. SR exists for tight mechanical rooms where space wins over hydraulics.
One practical note: the center-to-end face-to-face dimension of a 90° elbow varies by manufacturer, so if your layout is tight, ask for the drawing before ordering — don’t assume two brands’ elbows are interchangeable.
Similar to the corresponding type of seamless steel pipe, the outer diameter is multiplied by the millimeter number of wall thickness, such as: 57*3.5; 89*4.5; 108*4.5; 159*6; 273*6; 325*8; the 90-degree elbow on the market, generally R=1.5D, and then R=5D, there are customized according to demand.

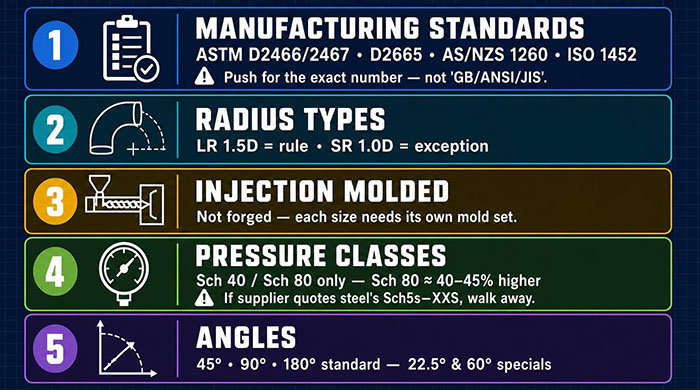

PVC 90 degree elbow pipe fittings parameters
1. Manufacturing standards: PVC elbows are made to ASTM D2466 (Schedule 40), ASTM D2467 (Schedule 80) and ASTM D2665 (DWV) in North America, AS/NZS 1260 in Australia/New Zealand, and ISO 1452 in metric markets. If a supplier answers “GB, ANSI, JIS, BS, DIN” without naming the PVC-specific standard, push for the exact number — that’s what your inspector will check.
2. Radius types: Long radius (R=1.5D) and short radius (R=1.0D), where D is the nominal pipe diameter. For drainage and pressure lines, long radius is the rule; short radius elbows are the exception, used only where space is genuinely tight.
3. Manufacturing process: PVC elbow fittings are injection molded, not forged — molten PVC-U compound is injected into steel molds, cooled, and finished. The mold tooling is why a full size range from one manufacturer is a real capability signal: every nominal size needs its own mold set.
4. Pressure classes: PVC pressure elbows come in Schedule 40 and Schedule 80 (plus DWV for non-pressure drainage). That’s it — Schedule 80’s pressure rating runs roughly 40–45% higher than Schedule 40 at the same size, thanks to thicker walls. The 17-grade Sch5s–XXS system belongs to steel pipe, not PVC; if a PVC supplier quotes it, walk away.
5. Angles: Standard PVC elbows are 45°, 90°, and 180°; 22.5° and 60° are made as specials for odd layouts and are usually stocked in smaller sizes only.
Matching PVC Pipe & elbow Fitting Sizes
Selecting the correct size fittings to match your PVC pipe can be confusing if you do not already know what size PVC pipe you have. All plumbing grade PVC should have size and rating information imprinted on the outside of the pipe. PVC pipe is named for the inside diameter, commonly referred to as “a nominal size”. If not able to locate this information then simply measuring the inside or outside diameter will help you determine the correct pipe size using the table below.
Schedule 40 PVC Pipe Size Table
| Nominal Size | Outside Diameter | Inside Diameter (approx.) | Wall Thickness | Metric (DN) |
|---|---|---|---|---|
| 1/2″ | 0.840″ (21.3 mm) | 0.622″ (15.8 mm) | 0.109″ (2.77 mm) | DN15 |
| 3/4″ | 1.050″ (26.7 mm) | 0.824″ (20.9 mm) | 0.113″ (2.87 mm) | DN20 |
| 1″ | 1.315″ (33.4 mm) | 1.049″ (26.6 mm) | 0.133″ (3.38 mm) | DN25 |
| 1-1/4″ | 1.660″ (42.2 mm) | 1.380″ (35.1 mm) | 0.140″ (3.56 mm) | DN32 |
| 1-1/2″ | 1.900″ (48.3 mm) | 1.610″ (40.9 mm) | 0.145″ (3.68 mm) | DN40 |
| 2″ | 2.375″ (60.3 mm) | 2.067″ (52.5 mm) | 0.154″ (3.91 mm) | DN50 |
| 2-1/2″ | 2.875″ (73.0 mm) | 2.469″ (62.7 mm) | 0.203″ (5.16 mm) | DN65 |
| 3″ | 3.500″ (88.9 mm) | 3.068″ (77.9 mm) | 0.216″ (5.49 mm) | DN80 |
| 4″ | 4.500″ (114.3 mm) | 4.026″ (102.3 mm) | 0.237″ (6.02 mm) | DN100 |
| 6″ | 6.625″ (168.3 mm) | 6.065″ (154.1 mm) | 0.280″ (7.11 mm) | DN150 |
| 8″ | 8.625″ (219.1 mm) | 7.981″ (202.7 mm) | 0.322″ (8.18 mm) | DN200 |
| 10″ | 10.750″ (273.0 mm) | 10.020″ (254.5 mm) | 0.365″ (9.27 mm) | DN250 |
| 12″ | 12.750″ (323.8 mm) | 11.938″ (303.2 mm) | 0.406″ (10.31 mm) | DN300 |
Dimensions per ASTM D1785, Schedule 40. Inside diameters are calculated (OD minus 2× wall thickness). Always verify against the pipe you have on site.
summarize

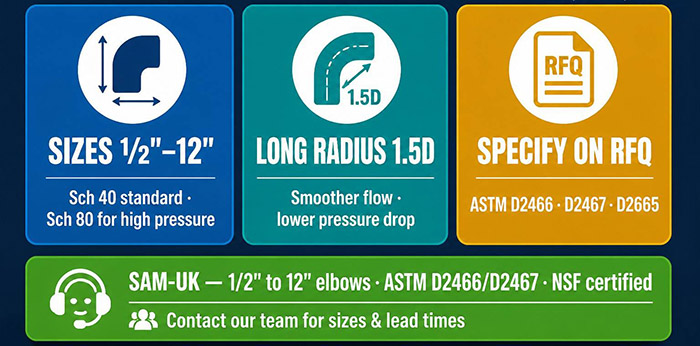

90 degree PVC elbows come in nominal sizes from 1/2″ to 12″ in Schedule 40, with Schedule 80 for higher-pressure jobs; long radius (R=1.5D) is the standard choice for smoother flow and lower pressure drop. Match the fitting to the pipe by nominal size, keep the pressure class consistent, and specify ASTM D2466 (Sch 40), D2467 (Sch 80), or D2665 (drainage) on the RFQ.
Need the full range? SAM-UK manufactures 1/2″ to 12″ elbows to ASTM D2466/D2467 with NSF certification — contact our team for sizes and lead times.
Frequently Asked Questions
1. What sizes do PVC 90 degree elbows come in?
Nominal sizes from 1/2″ to 12″ in Schedule 40, and 1/2″ to 8″ in Schedule 80 are the practical stocking range for most manufacturers. Odd sizes like 2-1/2″ exist but are usually special-order.
2. What’s the difference between long radius and short radius elbows?
Long radius (R=1.5D) is the standard PVC elbow — smoother flow, lower pressure drop, less stress on the joint. Short radius (R=1.0D) is a space-saving compromise used in tight chases and mechanical rooms.
3. Is Schedule 80 stronger than Schedule 40?
Yes. Schedule 80 walls are roughly 40–45% thicker, and the pressure rating runs about 40–45% higher at the same size. Use Schedule 80 for high-pressure service, above-ground industrial lines, and wherever shock or temperature derating applies.
4. How do I know which elbow size to buy?
Read the imprint on the pipe — plumbing-grade PVC is always marked with size and rating. No marking? Measure the outside diameter and match it to the table above, then buy the fitting with the same nominal size.
5. Can I glue a Schedule 40 elbow to a Schedule 80 pipe?
Both share the same outside diameter at a given nominal size, so they physically fit — but mixing pressure classes is bad practice: the joint is only as strong as the weaker part. Match the fitting class to the pipe class.
